Customizable Transformer Accessories Electrical Insulation Components Precisely Machined

Customizable insulation components in various styles for transformers

We provide customized insulation components in diverse styles for all types of transformers, which are precisely machined with premium insulating materials to meet your unique structural and operational requirements.

Functions

1. Electrical Insulation (Primary Function): It separates live parts at different potentials, as well as energized components from earthed metal housings, to eliminate electric leakage, phase-to-phase short circuits and earth breakdown. It also suppresses partial discharge and ensures safe isolation between high-voltage and low-voltage systems.
2. Mechanical Support and Positioning: It secures the mounting positions of windings, lead wires and iron cores, and prevents displacement and deformation induced by vibration during transportation and operation.
3. Auxiliary Heat Dissipation and Flow Guidance: Arranged insulating stays and spacers form oil flow passages to guide the circulating flow of transformer oil and dissipate heat generated by windings in operation.
4. Protection and Durability: It withstands immersion in transformer oil, high temperatures and humid environments, slows down the aging and corrosion of internal components, and extends the overall service life of the transformer.

Customizable Transformer Accessories E

Customizable Transformer Insulation Components

Electrical Insulation Components for Transformer

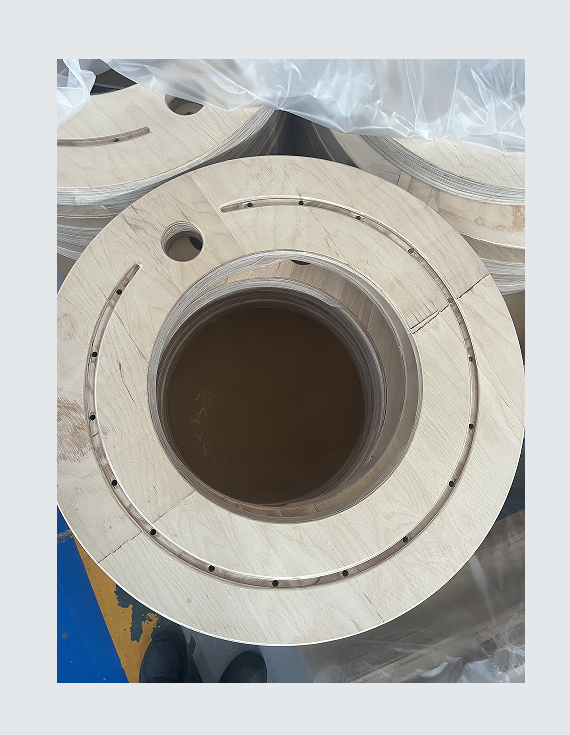

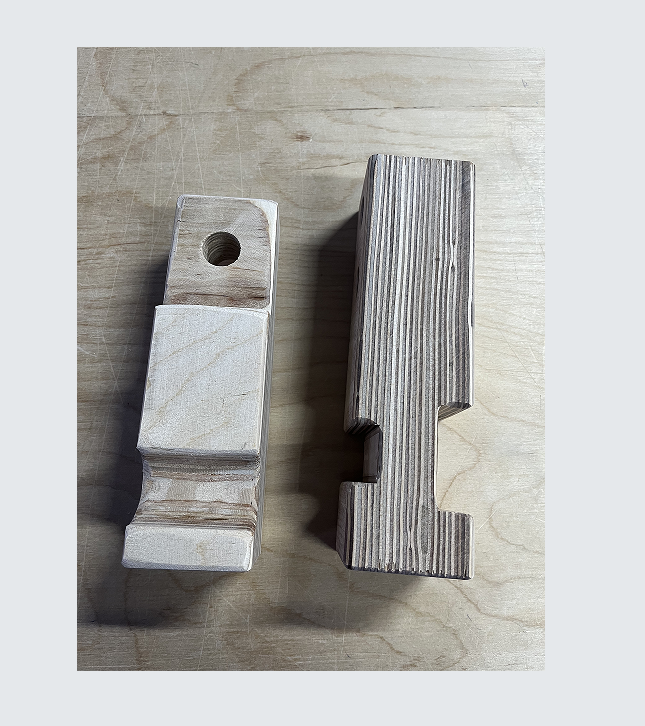

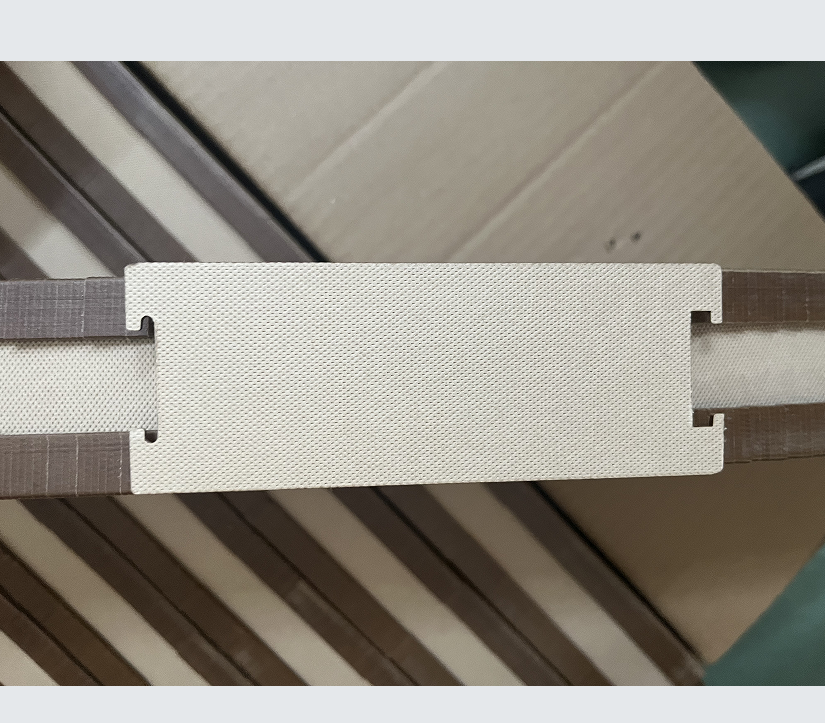

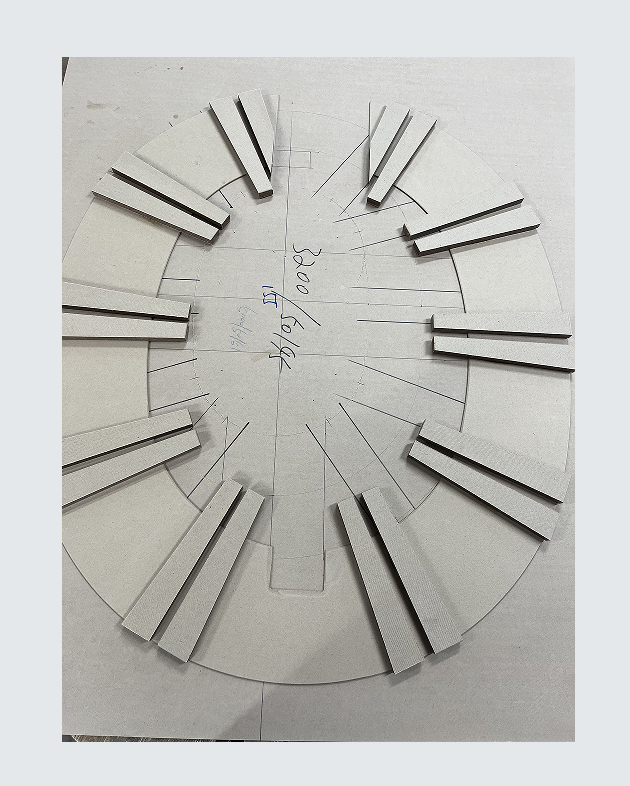

Customizable Transformer Accessories Electrical Insulation Components Precisely Machined Images
